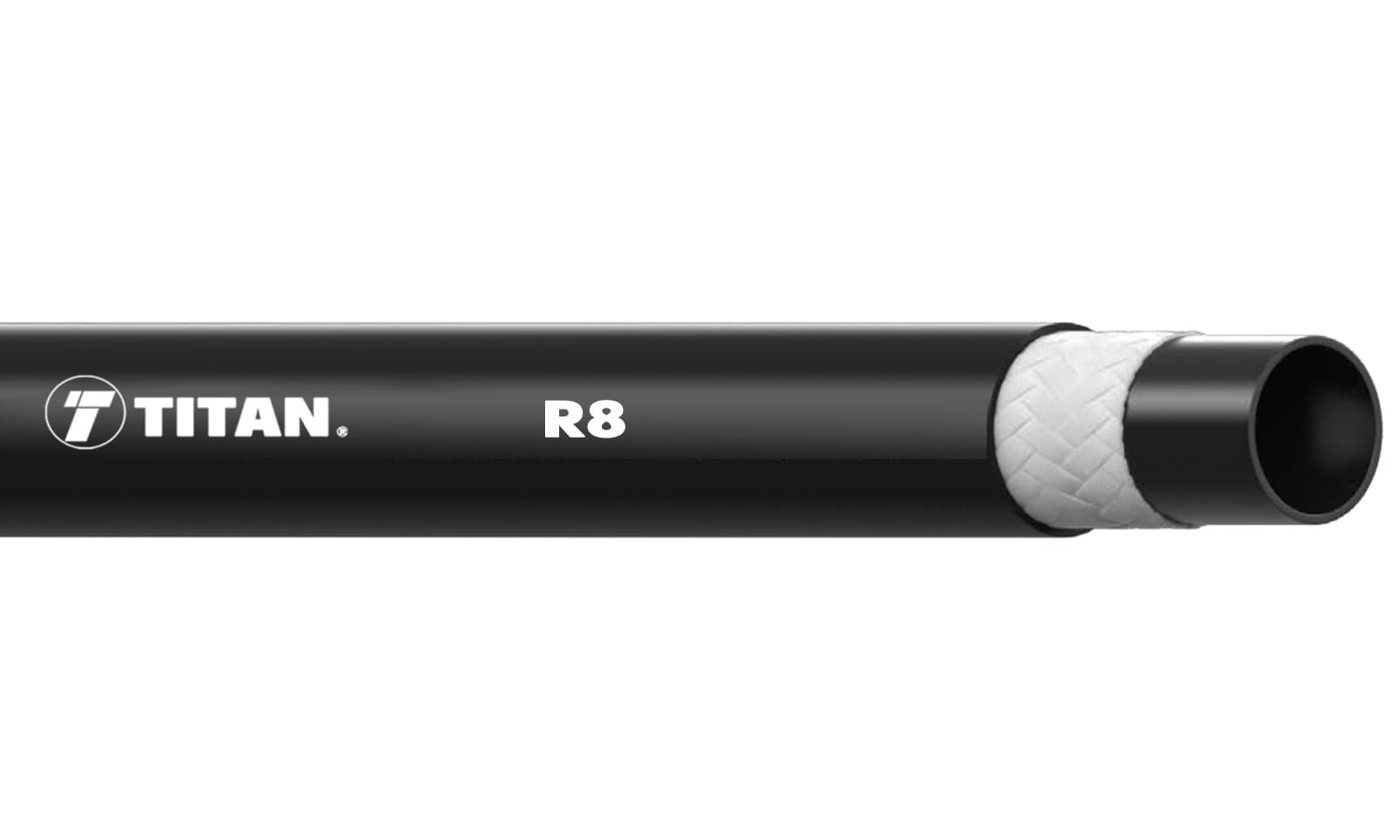

R8 Series
Black High Pressure Thermoplastic Hydraulic Hoses - R8 - SAE100R8(Please Note Reel Lengths Are Not Continuous)
Inner Core:Thermoplastic Elastomer
Outer Cover:MSHA Certified, Vulcanized Abrasion and Weather Resistant Synthetic Rubber
Temp Operating Range:-40°F/-40°C to 212°F/100°C (+248°F/120°C max.)
Sort by:
R8
| HOSE SIZE | RATED (PSI) |
| 3/16 | 5,000 |
| 1/4 | 5,000 |
| 3/8 | 4,000 |
| 1/2 | 3,500 |

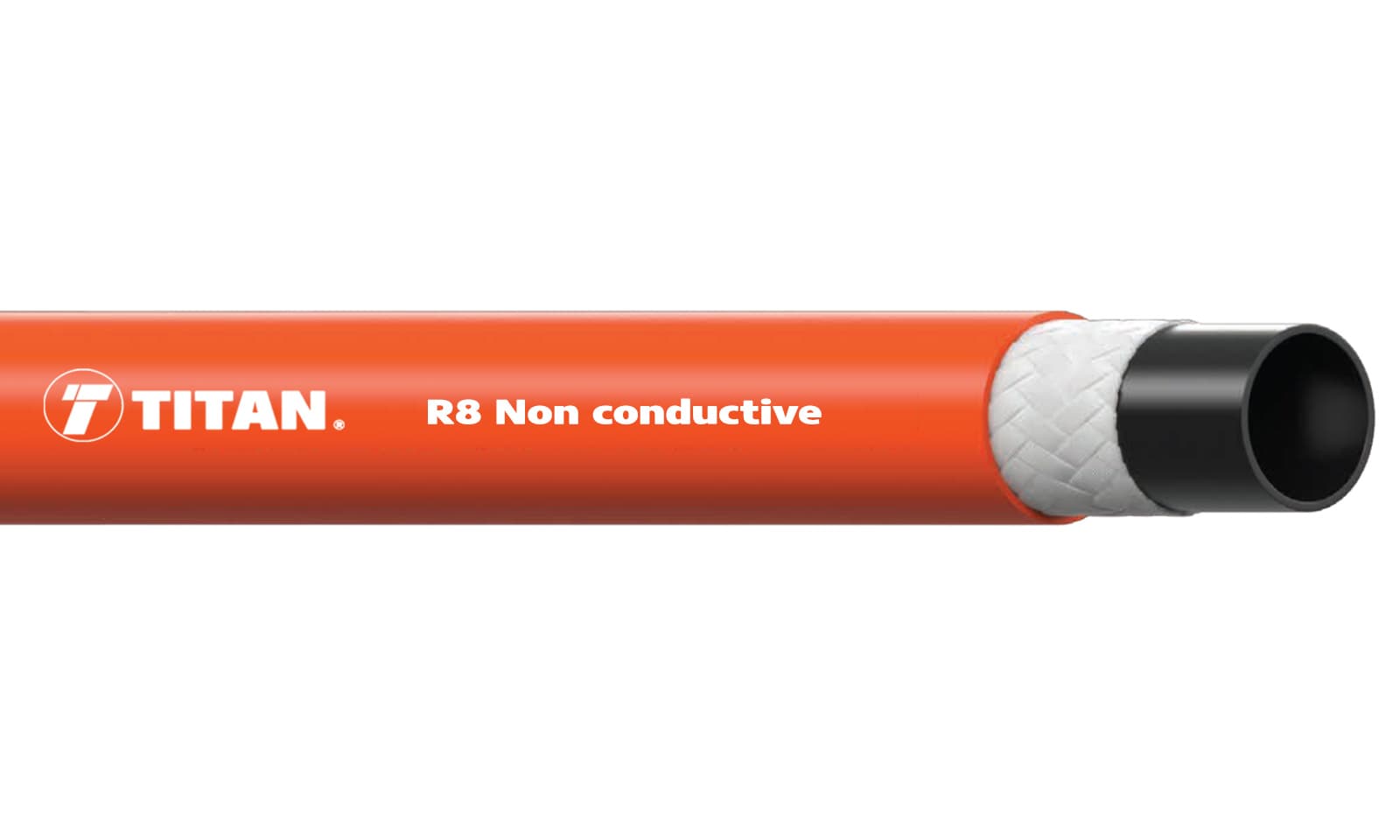

R8NC
Orange Non Conductive High Pressure Thermoplastic Hydraulic Hoses

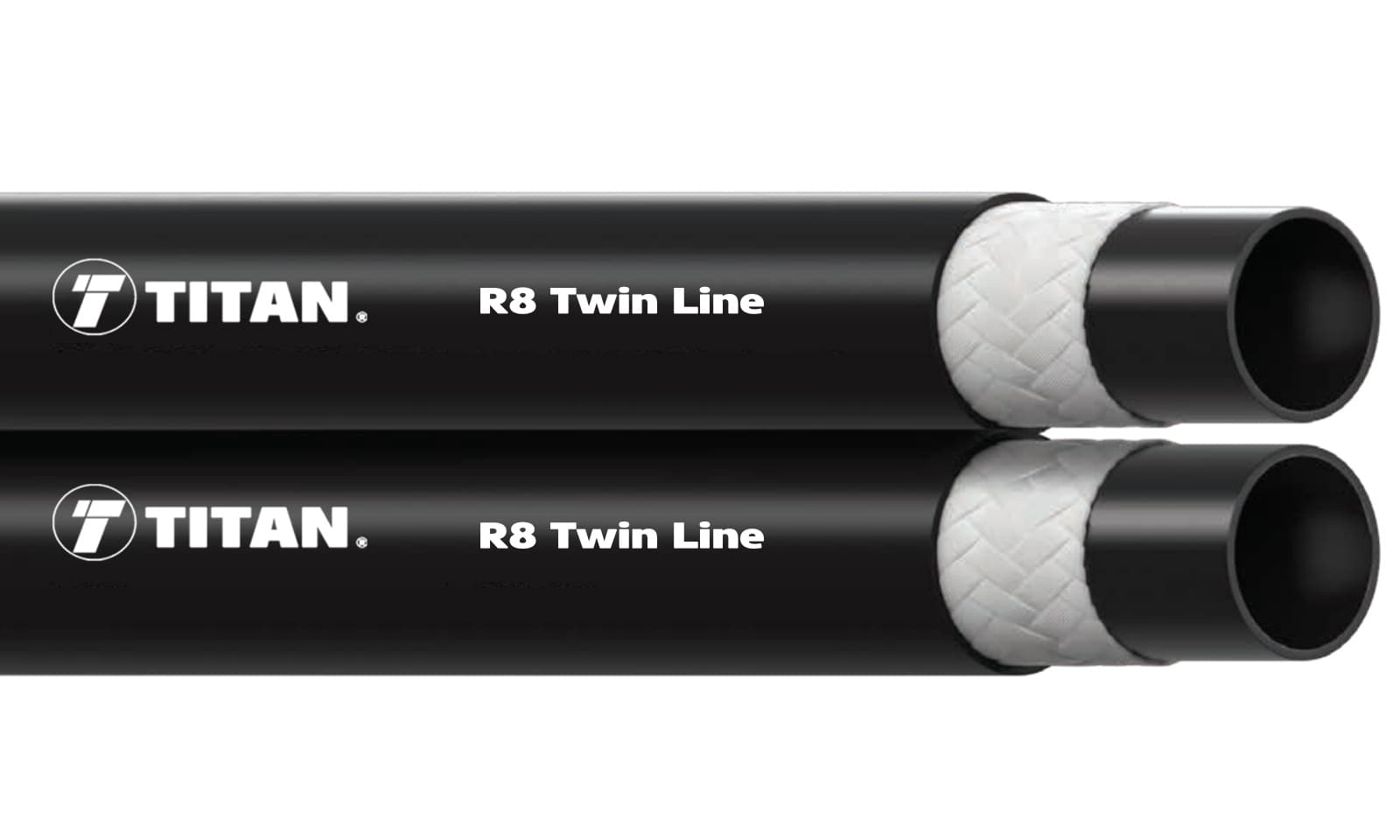

R8TW
Black Twin Line High Pressure Thermoplastic Hydraulic Hoses
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4 | 5,075 | 0.626 |
| 3/8 | 4,060 | 0.764 |
| 1/2 | 3,553 | 0.894 |

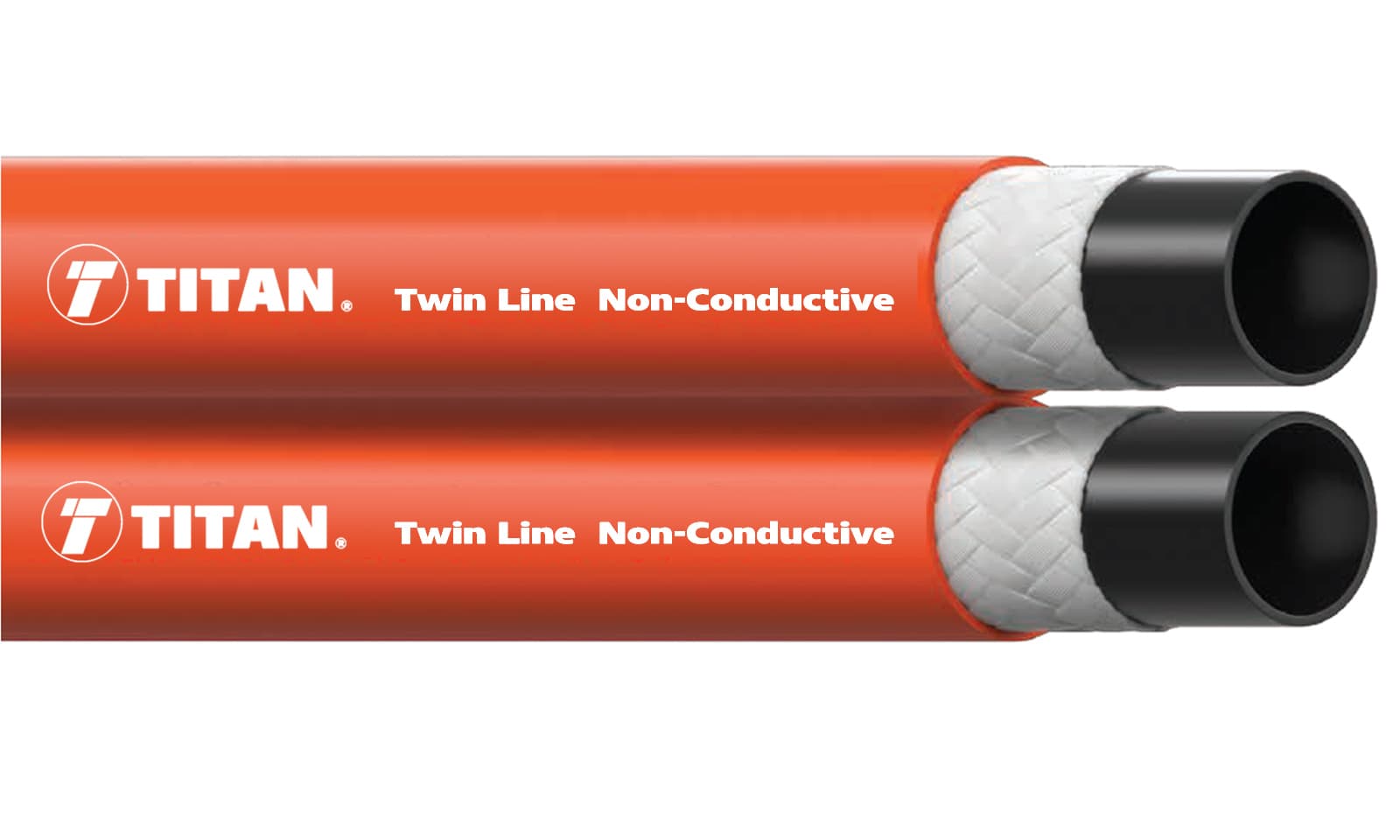

R8TWNC
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 3/16 | 5,000 | .52 |
| 1/4 | 5,000 | .63 |
| 3/8 | 4,000 | .77 |
| 1/2 | 3,500 | .89 |
