R7 Series
High Pressure Thermoplastic Hydraulic Hoses
Sort by:

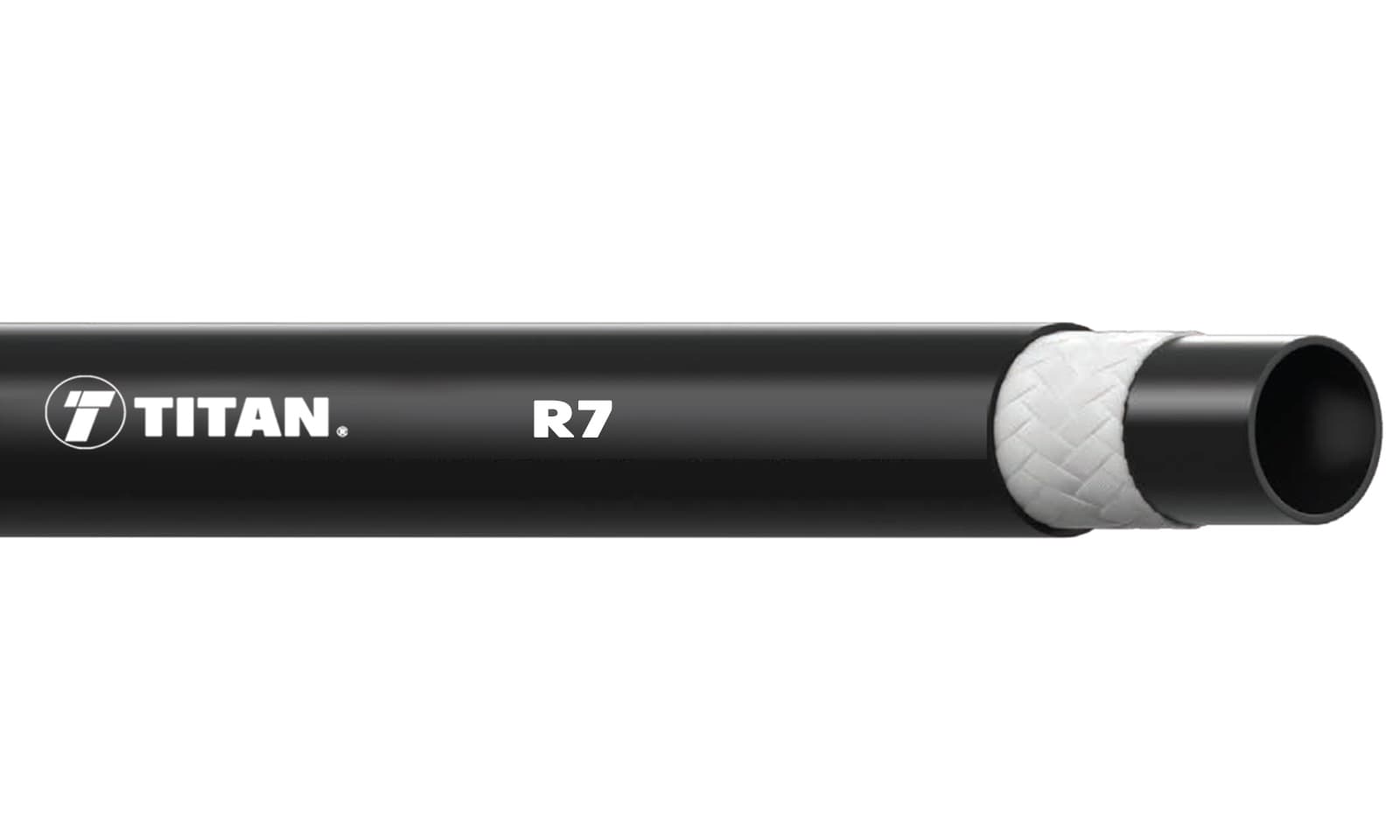

R7
Black Thermoplastic Hydraulic Hoses
| HOSE SIZE | RATED (PSI) |
| 1/8 | 3,000 |
| 3/16 | 3,000 |
| 1/4 | 2,750 |
| 5/16 | 2,500 |

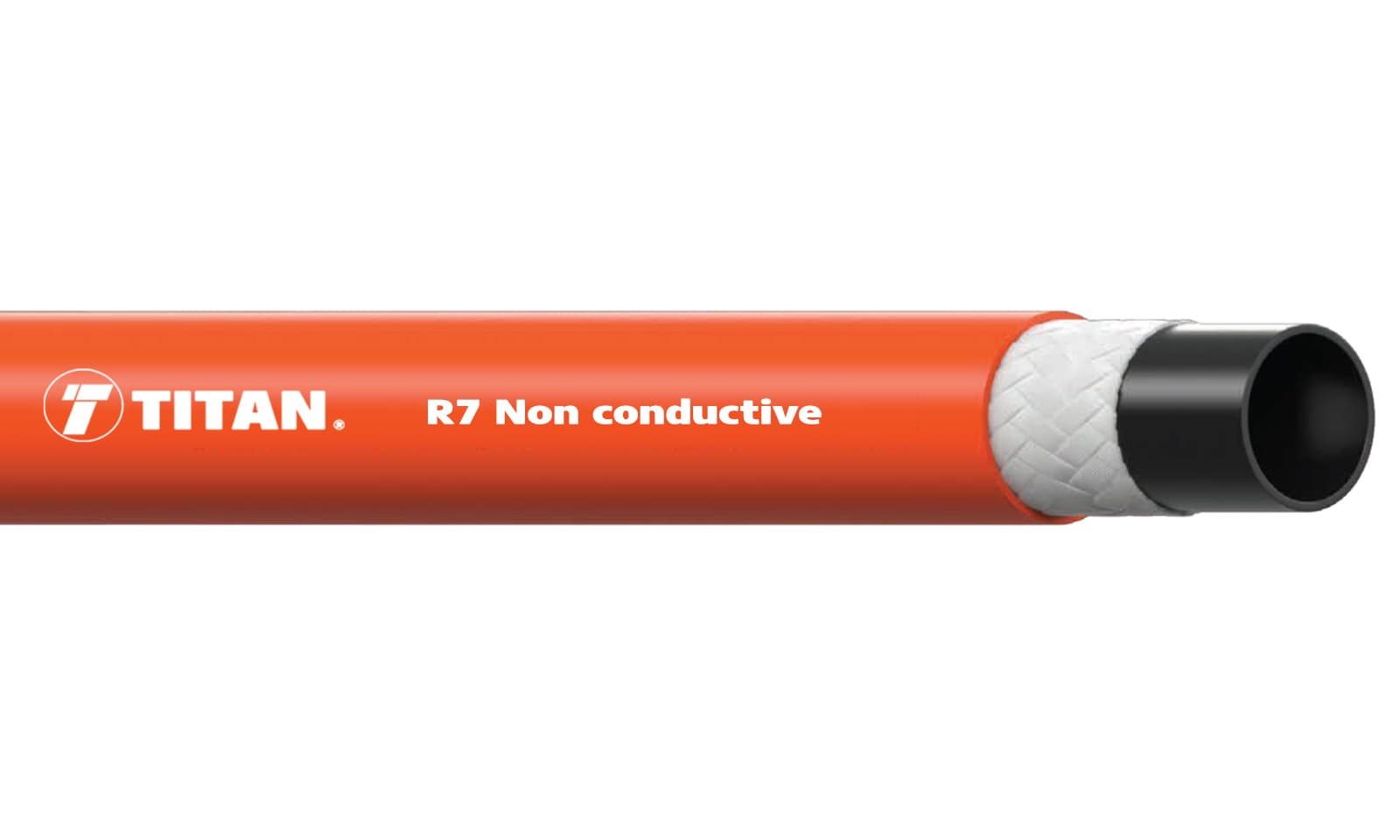

R7NC
Orange Non Conductive Thermoplastic Hydraulic Hoses
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4 | 2,830 | 0.5 |
| 5/16 | 2,540 | 0.579 |
| 3/8 | 2,320 | 0.646 |
| 1/2 | 2,030 | 0.799 |

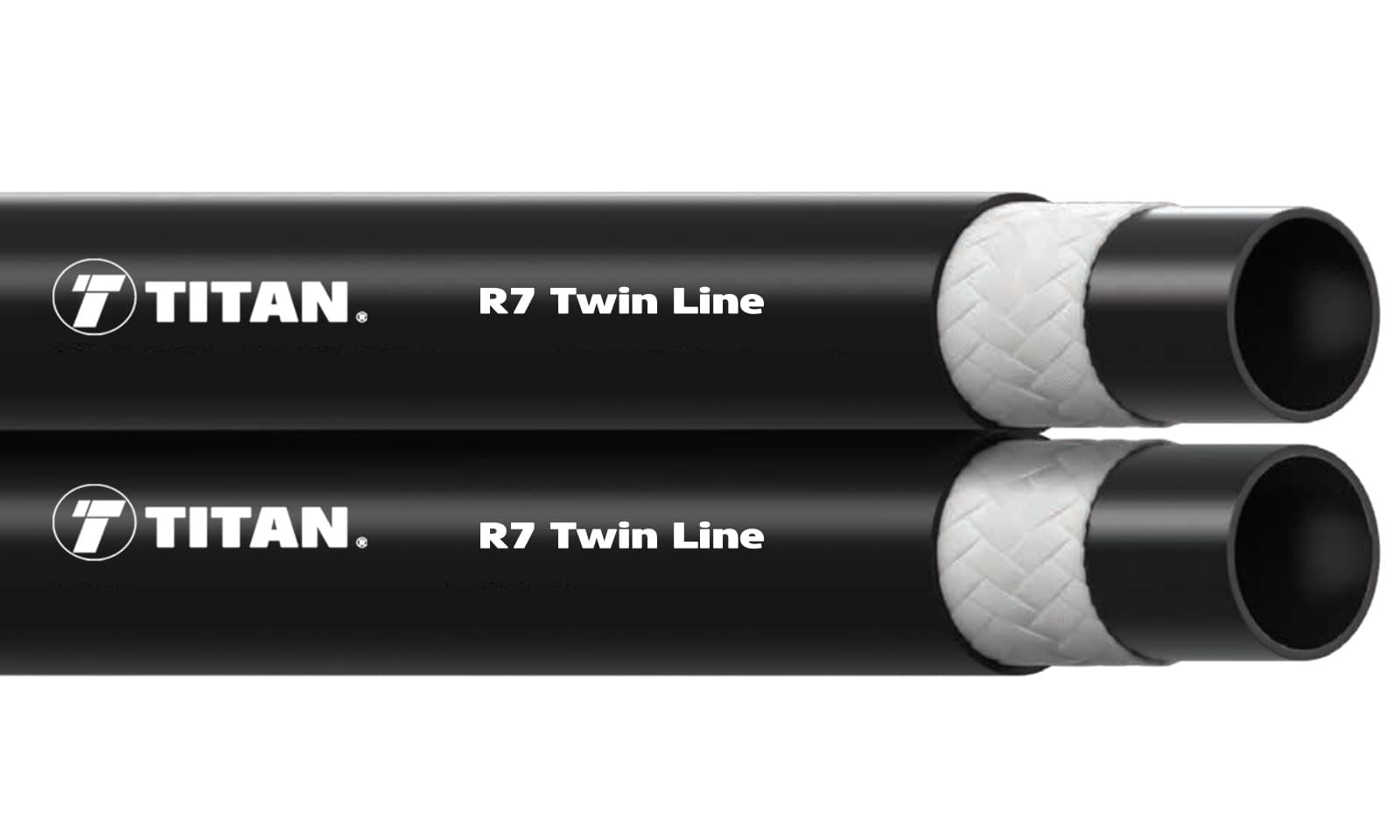

R7TW
Black Twin Line Thermoplastic Hydraulic Hoses
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4 | 2,828 | 0.539 |
| 5/16 | 2,538 | 0.614 |
| 3/8 | 2,320 | 0.724 |
| 1/2 | 2,030 | 0.886 |

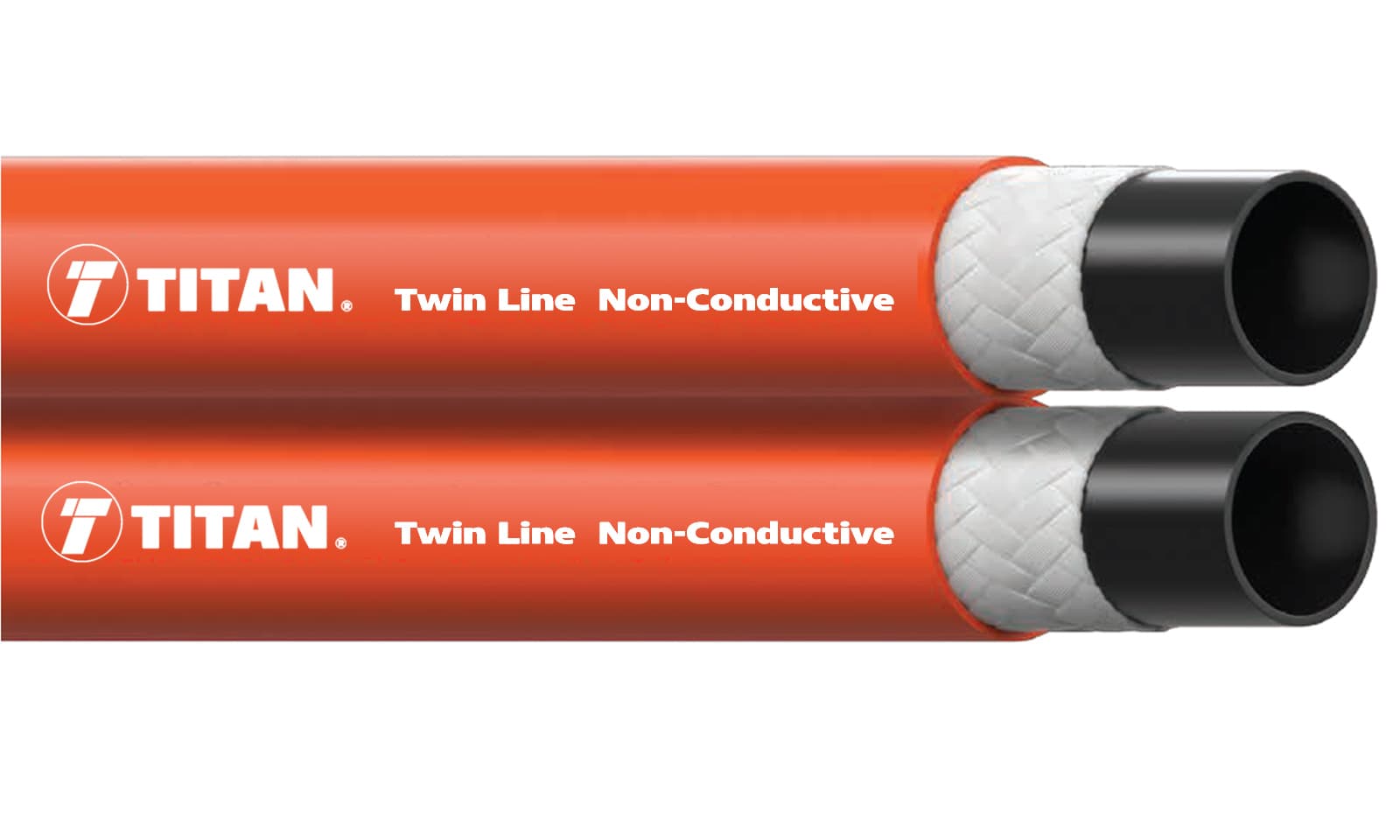

R7TWNC
Orange Non Conductive Twin Line Thermoplastic Hydraulic Hoses
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4 | 2,828 | 0.539 |
| 5/16 | 2,538 | 0.614 |
| 3/8 | 2,320 | 0.724 |
| 1/2 | 2,030 | 0.886 |
