AF - Female NPT Stub Adapter - Tube Fittings
NPT Adapter

Stainless Tube Female Pipe NPT Adapter


Material: 316 Stainless Steel
Bar Stock: ASTM A479, ASTM A276
Forging: ASTM B164

AF - Female NPT Adapter

Item# Item Name Our Price Qty Add To Cart
AF-2-2N AF-02-02N - 1/8" Stub x 1/8" Female NPT Adapter - 316 Stainless
$7.80
AF-2-4N AF-02-04N - 1/8" Stub x 1/4" Female NPT Adapter - 316 Stainless
$9.73
AF-3-2N AF-03-02N - 3/16" Stub x 1/8" Female NPT Adapter - 316 Stainless
$6.26
AF-3-4N AF-03-04N - 3/16" Stub x 1/4" Female NPT Adapter - 316 Stainless
$9.01
AF-4-2N AF-04-02N - 1/4" Stub x 1/8" Female NPT Adapter - 316 Stainless
$5.96
AF-4-4N AF-04-04N - 1/4" Stub x 1/4" Female NPT Adapter - 316 Stainless
$7.52
AF-4-6N AF-04-06N - 1/4" Stub x 3/8" Female NPT Adapter - 316 Stainless
$10.10
AF-4-8N AF-04-08N - 1/4" Stub x 1/2" Female NPT Adapter - 316 Stainless
$13.61
AF-5-2N AF-05-02N - 5/16" Stub x 1/8" Female NPT Adapter - 316 Stainless
$11.65
AF-5-4N AF-05-04N - 5/16" Stub x 1/4" Female NPT Adapter - 316 Stainless
$7.52
AF-6-2N AF-06-02N - 3/8" Stub x 1/8" Female NPT Adapter - 316 Stainless
$6.79
AF-6-4N AF-06-04N - 3/8" Stub x 1/4" Female NPT Adapter - 316 Stainless
$7.65
AF-6-6N AF-06-06N - 3/8" Stub x 3/8" Female NPT Adapter - 316 Stainless
$10.84
AF-6-8N AF-06-08N - 3/8" Stub x 1/2" Female NPT Adapter - 316 Stainless
$14.33
AF-8-4N AF-08-04N - 1/2" Stub x 1/4" Female NPT Adapter - 316 Stainless
$10.26
AF-8-6N AF-08-06N - 1/2" Stub x 3/8" Female NPT Adapter - 316 Stainless
$10.61
AF-8-8N AF-08-08N - 1/2" Stub x 1/2" Female NPT Adapter - 316 Stainless
$15.03
AF-10-6N AF-10-06N - 5/8" Stub x 3/8" Female NPT Adapter - 316 Stainless
$12.00
AF-10-8N AF-10-08N - 5/8" Stub x 1/2" Female NPT Adapter - 316 Stainless
$15.27
AF-12-8N AF-12-08N - 3/4" Stub x 1/2" Female NPT Adapter - 316 Stainless
$16.33
AF-12-12N AF-12-12N - 3/4" Stub x 3/4" Female NPT Adapter - 316 Stainless
$17.05
AF-12-16N AF-12-16N - 3/4" Stub x 1" Female NPT Adapter - 316 Stainless
$21.55
AF-14-12N AF-14-12N - 7/8" Stub x 3/4" Female NPT Adapter - 316 Stainless
$17.30
AF-16-12N AF-16-12N - 1" Stub x 3/4" Female NPT Adapter - 316 Stainless
$17.30
AF-16-16N AF-16-16N - 1" Stub x 1" Female NPT Adapter - 316 Stainless
$28.37
Check the items you wish to purchase, then click


Features:

Tube Fitting Material: 316 Stainless Steel





Technical Specs:
Pressure Ratings:
Tube O.D.
(inch)		 TUBE WALL THICKNESS (inch)
0.010 0.012 0.014 0.016 0.020 0.028 0.035 0.049 0.065 0.083 0.095 0.109 0.120
1/16 5600 6800 8100 9400 12000
1/8 8500 10900
3/16 5400 7000 10200
1/4 4000 5100 7500 10200
5/16 4000 5800 8000
3/8 3300 4800 6500
1/2 2600 3700 5100 6700
5/8 2900 4000 5200 6000
3/4 2400 3300 4200 4900 5800
7/8 2000 2800 3600 4200 4800
1 2400 3100 3600 4200 4700
= Tubing working pressure (psi)

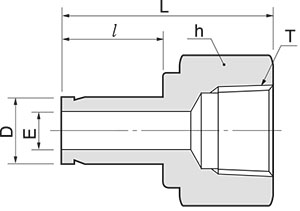

Dimensional Drawings:
CONNECTS FRACTIONAL SUPERLOK PORT TO MALE NPT THREAD
Tube O.D.T*dWidth Across Flat
Part No.D (inch)(NPT)Minh (inch)IL
AF-2-2N1/81/82.289/1613.4531.5
AF-2-4N1/81/42.283/413.4535.3
AF-3-2N3/161/83.049/1614.232
AF-3-4N3/161/43.043/414.235.81
AF-4-2N1/41/84.829/1615.7533.02
AF-4-4N1/41/44.823/415.7537.1
AF-4-6N1/43/84.827/815.7539.37
AF-4-8N1/41/24.821-1/1615.7545.5
AF-5-2N5/161/86.359/1616.834.29
AF-5-4N5/161/46.353/416.837.59
AF-6-2N3/81/87.119/1617.534.29
AF-6-4N3/81/47.113/417.538.1
AF-6-6N3/83/87.117/817.540.38
AF-6-8N3/81/27.111-1/1617.546.73
AF-8-4N1/21/49.93/423.243.43
AF-8-6N1/23/89.97/823.245.46
AF-8-8N1/21/29.91-1/1623.251.8
AF-10-6N5/83/812.77/824.748.26
AF-10-8N5/81/212.71-1/1624.753.08
AF-12-8N3/41/214.981-1/1624.752.83
AF-12-12N3/43/414.981-5/1624.754.86
AF-12-16N3/4114.981-5/824.758.42
AF-14-12N7/83/417.271-5/1626.757.15
AF-16-12N13/420.321-5/1631.760.7
AF-16-16N1120.321-5/831.764.26
Competitor Cross Reference:
COMPETITOR PART NUMBER
ITEM #SWAGELOKSSP DUOLOKPARKER A-LOK
AF-2-2NSS-2-TA-7-2ISSD2AF22AF2N-SS
AF-2-4NSS-2-TA-7-4ISSD2AF42AF4N-SS
AF-3-2NSS-3-TA-7-2ISSD3AF23AF2N-SS
AF-3-4NSS-3-TA-7-4ISSD3AF43AF4N-SS
AF-4-2NSS-4-TA-7-2ISSD4AF24AF2N-SS
AF-4-4NSS-4-TA-7-4ISSD4AF44AF4N-SS
AF-4-6NSS-4-TA-7-6ISSD4AF64AF6N-SS
AF-4-8NSS-4-TA-7-8ISSD4AF84AF8N-SS
AF-5-2NSS-5-TA-7-2ISSD5AF25AF2N-SS
AF-5-4NSS-5-TA-7-4ISSD5AF45AF4N-SS
AF-6-2NSS-6-TA-7-2ISSD6AF26AF2N-SS
AF-6-4NSS-6-TA-7-4ISSD6AF46AF4N-SS
AF-6-6NSS-6-TA-7-6ISSD6AF66AF6N-SS
AF-6-8NSS-6-TA-7-8ISSD6AF86AF8N-SS
AF-8-4NSS-8-TA-7-4ISSD8AF48AF4N-SS
AF-8-6NSS-8-TA-7-6ISSD8AF68AF6N-SS
AF-8-8NSS-8-TA-7-8ISSD8AF88AF8N-SS
AF-10-6NSS-10-TA-7-6ISSD10AF610AF6N-SS
AF-10-8NSS-10-TA-7-8ISSD10AF810AF8N-SS
AF-12-8NSS-12-TA-7-8ISSD12AF812AF8N-SS
AF-12-12NSS-12-TA-7-12ISSD12AF1212AF12N-SS
AF-12-16NSS-12-TA-7-16ISSD12AF1612AF16N-SS
AF-14-12NSS-14-TA-7-12ISSD14AF1214AF12N-SS
AF-16-12NSS-16-TA-7-12ISSD16AF1216AF12N-SS
AF-16-16NSS-16-TA-7-16ISSD16AF1616AF16N-SS
