SS-2601
2601_JIC_Fitting
(1,2) MJ (3) MP

Alternative Views:


37° JIC Male to NPT Male Pipe Branch Tee (Stainless)


Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Comparable: AEROQUIP 2030, PARKER STX-SS, SSP J-TTM, SAE 70425
JIC/AN Male to Male NPT Pipe Branch Tee

Item# Item Name Our Price Qty Add To Cart
SS-2601-02-02-02 SS-2601-02-02-02 - 1/2" JIC/AN 37° x 1/8" Male Pipe Tee - Stainless Steel
$64.01
SS-2601-03-03-02 SS-2601-03-03-02 - 3/16" JIC/AN 37° x 1/8" Male Pipe Tee - Stainless Steel
$42.92
SS-2601-04-04-02 SS-2601-04-04-02 - 1/4" JIC/AN 37° x 1/8" Male Pipe Tee - Stainless Steel
$17.88
SS-2601-04-04-04 SS-2601-04-04-04 - 1/4" JIC/AN 37° x 1/4" Male Pipe Tee - Stainless Steel
$29.77
SS-2601-04-04-06 SS-2601-04-04-06 - 1/4" JIC/AN 37° x 3/8" Male Pipe Tee - Stainless Steel
$78.36
SS-2601-05-05-02 SS-2601-05-05-02 - 5/16" JIC/AN 37° x 1/8" Male Pipe Tee - Stainless Steel
$37.60
SS-2601-05-05-04 SS-2601-05-05-04 - 5/16" JIC/AN 37° x 1/4" Male Pipe Tee - Stainless Steel
$48.23
SS-2601-06-06-04 SS-2601-06-06-04 - 3/8" JIC/AN 37° x 1/4" Male Pipe Tee - Stainless Steel
$21.93
SS-2601-06-06-06 SS-2601-06-06-06 - 3/8" JIC/AN 37° x 3/8" Male Pipe Tee - Stainless Steel
$70.42
SS-2601-08-08-04 SS-2601-08-08-04 - 1/2" JIC/AN 37° x 1/4" Male Pipe Tee - Stainless Steel
$38.85
SS-2601-08-08-06 SS-2601-08-08-06 - 1/2" JIC/AN 37° x 3/8" Male Pipe Tee - Stainless Steel
$37.42
SS-2601-08-08-08 SS-2601-08-08-08 - 1/2" JIC/AN 37° x 1/2" Male Pipe Tee - Stainless Steel
$55.44
SS-2601-10-10-08 SS-2601-10-10-08 - 5/8" JIC/AN 37° x 1/2" Male Pipe Tee - Stainless Steel
$102.33
SS-2601-12-12-12 SS-2601-12-12-12 - 3/4" JIC/AN 37° x 3/4" Male Pipe Tee - Stainless Steel
$66.00
SS-2601-16-16-16 SS-2601-16-16-16 - 1" JIC/AN 37° x 1" Male Pipe Tee - Stainless Steel
$152.73
SS-2601-20-20-20 SS-2601-20-20-20 - 1-1/4" JIC/AN 37° x 1-1/4" Male Pipe Tee - Stainless Steel
$180.09
SS-2601-24-24-24 SS-2601-24-24-24 - 1-1/2" JIC/AN 37° x 1-1/2" Male Pipe Tee - Stainless Steel
$319.73
Check the items you wish to purchase, then click


Features:
37° JIC Male to NPTF Male Pipe Branch Tee (Stainless)
Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Intercomparable: AEROQUIP 2030, PARKER STX-SS, SSP J-TTM, SAE 70425



Technical Specs:
Pressure Ratings:
SAE J514 Pressure Ratings
Nom. SAE Dash SizeNom. Tube O.D. Inches37 Degree Flare Straight ThreadNom. Pipe SizeSAE St. Threads Union & Bulkhead (PSI)Fittings With Pipe Threads (PSI)
21/85/16"-241/8"50005000
33/163/8"-241/8"50005000
41/47/16"-201/8"50005000
55/161/2"-201/8"50005000
63/89/16"-181/4"50005000
81/23/4"-163/8"45004000
105/87/8"-141/2"35003000
123/41 1/16"-123/4"35003000
147/81 3/16"-123/4"30002500
1611 5/16"-121"30002000
201 1/41 5/8"-121 1/4"25001150
241 1/21 7/8"-121 1/2"20001000
3222 1/2"-122"15001000
NOTE: Since many factors influence the pressure at which a system will or will not perform satisfactory, values shown in this table should not be construed as guaranteed minimum.

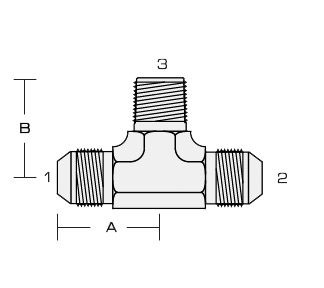

Dimensional Drawings:
ITEM # MJ-1 MJ-2 MP-3 THREAD-1 THREAD-2 THREAD-3 A B
SS-2601-02-02-02 1/8 1/8 1/8 5/16-24 5/16-24 1/8-27 0.73 0.692
SS-2601-04-04-02 1/4 1/4 1/8 7/16-20 7/16-20 1/8-27 0.887 0.804
SS-2601-04-04-04 1/4 1/4 1/4 7/16-20 7/16-20 1/4-18 1.092 1.089
SS-2601-06-06-04 3/8 3/8 1/4 9/16-18 9/16-18 1/4-18 1.083 1.04
SS-2601-06-06-06 3/8 3/8 3/8 9/16-18 9/16-18 3/8-18 1.172 1.239
SS-2601-08-08-06 1/2 1/2 3/8 3/4-16 3/4-16 3/8-18 1.367 1.486
SS-2601-08-08-08 1/2 1/2 1/2 3/4-16 3/4-16 1/2-14 1.264 1.262
SS-2601-10-10-08 5/8 5/8 1/2 7/8-14 7/8-14 1/2-14 1.467 1.44
SS-2601-12-12-12 3/4 3/4 3/4 1 1/16-12 1 1/16-12 3/4-14 1.669 1.599
SS-2601-16-16-16 1 1 1 1 5/16-12 1 5/16-12 1-11 1/2 1.87 1.835
SS-2601-20-20-20 1 1/4 1 1/4 1 1/4 1 5/8-12 1 5/8-12 1 1/4-11 1/2 2.062 2.367
Competitor Cross Reference:
INTERCHANGEABLE WITH:
ITEM # AEROQUIP PARKER SSP SAE MS
2601-02-02-02 259-2030-2-2 2 STX-SS J2TTM 70425 MS51512
2601-04-04-02 259-2030-2-4 4 STX-SS J4TTM 70425 MS51512
2601-04-04-04 259-2030-4-4 4-4-4 STX-SS J4-4-4TTM 70425 MS51512
2601-06-06-04 259-2030-4-6 6 STX-SS J6TTM 70425 MS51512
2601-06-06-06 259-2030-6-6 6-6-6 STX-SS J6-6-6TTM 70425 MS51512
2601-08-08-06 259-2030-6-8 8 STX-SS J8TTM 70425 MS51512
2601-08-08-08 259-2030-8-8 8-8-8 STX-SS J8-8-8TTM 70425 MS51512
2601-10-10-08 259-2030-8-10 10 STX-SS J10TTM 70425 MS51512
2601-12-12-12 259-2030-12-12 12 STX-SS J12TTM 70425 MS51512
2601-16-16-16 259-2030-16-16 16 STX-SS J16TTM 70425 MS51512
2601-20-20-20 259-2030-20-20 20 STX-SS J20TTM 70425 MS51512
2601-24-24-24 259-2030-24-24 24 STX-SS J24TTM 70425 MS51512
2601-32-32-32 259-2030-32-32 32 STX-SS J32TTM 70425 MS51512
