37° JIC Male to NPT Female Pipe Branch Tee (Stainless)


Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Comparable: AEROQUIP 2031, PARKER OTX-SS, SSP J-TTF, SAE 70427
JIC/AN Male to NPT Female Pipe Branch Tee

Item# Item Name Our Price Qty Add To Cart
SS-2602-02-02-02 SS-2602-02-02-02 - 1/8" JIC/AN 37° x 1/8" Female Pipe Tee - Stainless Steel
$35.58
SS-2602-04-04-02 SS-2602-04-04-02 - 1/4" JIC/AN 37° x 1/8" Female Pipe Tee - Stainless Steel
$37.62
SS-2602-04-04-04 SS-2602-04-04-04 - 1/4" JIC/AN 37° x 1/4" Female Pipe Tee - Stainless Steel
$50.49
SS-2602-06-06-04 SS-2602-06-06-04 - 3/8" JIC/AN 37° x 1/4" Female Pipe Tee - Stainless Steel
$35.71
SS-2602-06-06-06 SS-2602-06-06-06 - 3/8" JIC/AN 37° x 3/8" Female Pipe Tee - Stainless Steel
$111.77
SS-2602-08-08-06 SS-2602-08-08-06 - 1/2" JIC/AN 37° x 3/8" Female Pipe Tee - Stainless Steel
$47.53
SS-2602-08-08-08 SS-2602-08-08-08 - 1/2" JIC/AN 37° x 1/2" Female Pipe Tee - Stainless Steel
$76.61
SS-2602-10-10-08 SS-2602-10-10-08 - 5/8" JIC/AN 37° x 1/2" Female Pipe Tee - Stainless Steel
$80.88
SS-2602-12-12-12 SS-2602-12-12-12 - 3/4" JIC/AN 37° x 3/4" Female Pipe Tee - Stainless Steel
$124.07
SS-2602-16-16-16 SS-2602-16-16-16 - 1" JIC/AN 37° x 1" Female Pipe Tee - Stainless Steel
$164.59
Check the items you wish to purchase, then click


Features:
37° JIC Male to NPTF Female Pipe Branch Tee (Stainless)
Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Intercomparable: AEROQUIP 2031, PARKER OTX-SS, SSP J-TTF, SAE 70427



Technical Specs:
Pressure Ratings:
SAE J514 Pressure Ratings
Nom. SAE Dash SizeNom. Tube O.D. Inches37 Degree Flare Straight ThreadNom. Pipe SizeSAE St. Threads Union & Bulkhead (PSI)Fittings With Pipe Threads (PSI)
21/85/16"-241/8"50005000
33/163/8"-241/8"50005000
41/47/16"-201/8"50005000
55/161/2"-201/8"50005000
63/89/16"-181/4"50005000
81/23/4"-163/8"45004000
105/87/8"-141/2"35003000
123/41 1/16"-123/4"35003000
147/81 3/16"-123/4"30002500
1611 5/16"-121"30002000
201 1/41 5/8"-121 1/4"25001150
241 1/21 7/8"-121 1/2"20001000
3222 1/2"-122"15001000
NOTE: Since many factors influence the pressure at which a system will or will not perform satisfactory, values shown in this table should not be construed as guaranteed minimum.

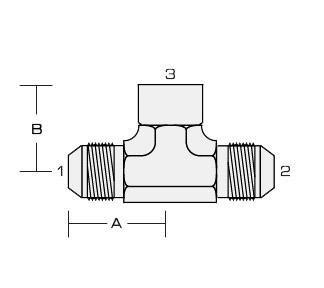

Dimensional Drawings:
ITEM # MJ-1 MJ-2 FP-3 THREAD-1 THREAD-2 THREAD-3 A B
SS-2602-02-02-02 1/8 1/8 1/8 5/16-24 5/16-24 1/8-27 1.046 0.651
SS-2602-04-04-02 1/4 1/4 1/8 7/16-20 7/16-20 1/8-27 1.085 0.632
SS-2602-04-04-04 1/4 1/4 1/4 7/16-20 7/16-20 1/4-18 1.22 0.88
SS-2602-06-06-04 3/8 3/8 1/4 9/16-18 9/16-18 1/4-18 1.235 0.899
SS-2602-06-06-06 3/8 3/8 3/8 9/16-18 9/16-18 3/8-18 1.31 1.02
SS-2602-08-08-06 1/2 1/2 3/8 3/4-16 3/4-16 3/8-18 1.459 1.005
SS-2602-08-08-08 1/2 1/2 1/2 3/4-16 3/4-16 1/2-14 1.526 1.288
SS-2602-10-10-08 5/8 5/8 1/2 7/8-14 7/8-14 1/2-14 1.644 1.197
SS-2602-12-12-12 3/4 3/4 3/4 1-1/16-12 1-1/16-12 3/4-14 1.89 1.36
SS-2602-16-16-16 1 1 1 1-5/16-12 1-5/16-12 1-11-1/2 2.203 1.605
