37° JIC Bulkhead Run Tee (Stainless)


Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Comparable: AEROQUIP 203008, PARKER WJJTX-SS, SSP J-BRT, SAE 70958
JIC/AN Bulkhead Run Tee

Item# Item Name Our Price Qty Add To Cart
SS-2704-04-04-04 SS-2704-04-04-04 - 1/4" JIC/AN 37° x 1/4" JIC/AN 37° Bulkhead Run Tee - Stainless Steel
$77.57
SS-2704-06-06-06 SS-2704-06-06-06 - 3/8" JIC/AN 37° x 3/8" JIC/AN 37° Bulkhead Run Tee - Stainless Steel
$90.27
SS-2704-08-08-08 SS-2704-08-08-08 - 1/2" JIC/AN 37° x 1/2" JIC/AN 37° Bulkhead Run Tee - Stainless Steel
$107.83
SS-2704-10-10-10 SS-2704-10-10-10 - 5/8" JIC/AN 37° x 5/8" JIC/AN 37° Bulkhead Run Tee - Stainless Steel
$189.39
SS-2704-12-12-12 SS-2704-12-12-12 - 3/4" JIC/AN 37° x 3/4" JIC/AN 37° Bulkhead Run Tee - Stainless Steel
$196.80
SS-2704-16-16-16 SS-2704-16-16-16 - 1" JIC/AN 37° x 1" JIC/AN 37° Bulkhead Run Tee - Stainless Steel
$251.45
SS-2704-20-20-20 SS-2704-20-20-20 - 1-1/4" JIC/AN 37° x 1-1/4" JIC/AN 37° Bulkhead Run Tee - Stainless Steel
$369.64
SS-2704-24-24-24 SS-2704-24-24-24 - 1-1/2" JIC/AN 37° x 1-1/2" JIC/AN 37° Bulkhead Run Tee - Stainless Steel
$468.62
SS-2704-32-32-32 SS-2704-32-32-32 - 2" JIC/AN 37° x 2" JIC/AN 37° Bulkhead Run Tee - Stainless Steel
$594.99
Check the items you wish to purchase, then click


Features:
37° JIC Bulkhead Run Tee (Stainless)
Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Intercomparable: AEROQUIP 203008, PARKER WJJTX-SS, SSP J-BRT, SAE 70958



Technical Specs:
Pressure Ratings:
SAE J514 Pressure Ratings
Nom. SAE Dash SizeNom. Tube O.D. Inches37 Degree Flare Straight ThreadNom. Pipe SizeSAE St. Threads Union & Bulkhead (PSI)Fittings With Pipe Threads (PSI)
21/85/16"-241/8"50005000
33/163/8"-241/8"50005000
41/47/16"-201/8"50005000
55/161/2"-201/8"50005000
63/89/16"-181/4"50005000
81/23/4"-163/8"45004000
105/87/8"-141/2"35003000
123/41 1/16"-123/4"35003000
147/81 3/16"-123/4"30002500
1611 5/16"-121"30002000
201 1/41 5/8"-121 1/4"25001150
241 1/21 7/8"-121 1/2"20001000
3222 1/2"-122"15001000
NOTE: Since many factors influence the pressure at which a system will or will not perform satisfactory, values shown in this table should not be construed as guaranteed minimum.

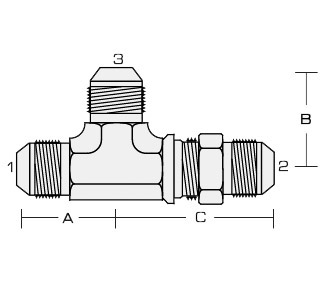

Dimensional Drawings:
ITEM # MJ-1 MJ-2 MJ-3 THREAD-1 THREAD-2 THREAD-3 A B C
SS-2704-04-04-04 1/4 1/4 1/4 7/16-20 7/16-20 7/16-20 0.97 0.97 1.59
SS-2704-06-06-06 3/8 3/8 3/8 9/16-18 9/16-18 9/16-18 1.09 1.09 1.81
SS-2704-08-08-08 1/2 1/2 1/2 3/4-16 3/4-16 3/4-16 1.361 1.361 2.12
SS-2704-10-10-10 5/8 5/8 5/8 7/8-14 7/8-14 7/8-14 - - -
SS-2704-12-12-12 3/4 3/4 3/4 1 1/16-12 1 1/16-12 1 1/16-12 1.78 1.78 2.67
SS-2704-16-16-16 1 1 1 1 5/16-12 1 5/16-12 1 5/16-12 1.879 1.879 2.834
SS-2704-20-20-20 1 1/4 1 1/4 1 1/4 1 5/8-12 1 5/8-12 1 5/8-12 2.17 2.17 3.12
SS-2704-24-24-24 1 1/2 1 1/2 1 1/2 1 7/8-12 1 7/8-12 1 7/8-12 2.34 2.34 3.42
SS-2704-32-32-32 2 2 2 2 1/2-12 2 1/2-12 2 1/2-12 - - -
