AGC-FP (AG Female and Male Coupler)
AGC-FP (AG Female and Male Coupler)

ISO 5675 Agricultural Quick Connect x NPTF Female

These quick connect couplers are equivalent to the following:
-Parker 4000 Series
-Dixon AG Series
-Stucchi IRV Series
-Aeroquip FD42
-Safeway S20 Series
-Faster NS Series

Coupling thread is NPTF Female
ISO 5675 Steel Poppet Socket/Plug NPTF Female

Item# Item Name Our Price Qty Add To Cart
AG-16M-16FP ISO5675, poppet steel plug 1" NPT
$21.88
AG-08M-08FP ISO5675, poppet steel plug 1/2" NPT
$9.54
AG-04M-04FP ISO5675, poppet steel plug 1/4" NPT
$10.94
AG-12M-12FP ISO5675, poppet steel plug 3/4" NPT
$21.43
AG-06M-06FP ISO5675, poppet steel plug 3/8" NPT
$9.30
AG-16F-16FP ISO5675, poppet steel socket 1" NPT
$24.61
AG-08F-08FP ISO5675, poppet steel socket 1/2" NPT
$12.54
AG-04F-04FP ISO5675, poppet steel socket 1/4" NPT
$12.89
AG-12F-12FP ISO5675, poppet steel socket 3/4" NPT
$24.77
AG-06F-06FP ISO5675, poppet steel socket 3/8" NPT
$12.57
Check the items you wish to purchase, then click


Features:
Material: High pressure carbon steel with zinc trivalent anti-corrosion coating
Seals: Standard in Nitrile NBR. On request FKM&EPDM seals
Back-up Ring: PTFE
Working Temperature: With standard seals -25°C to +125°C



Technical Specs:

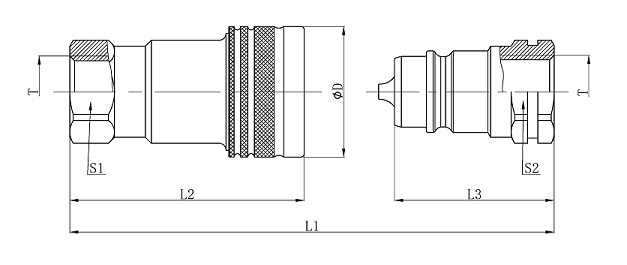

Product ID Female Product ID Male L1 L2 L3 ØD S1 S2 T
AG-04F-04FP AG-04M-04FP 73.5 55.5 35.0 28.0 19.0 19.0 1/4" NPT
AG-06F-06FP AG-06M-06FP 85.5 63.5 42.5 35.0 24.0 24.0 3/8" NPT
AG-08F-08FP AG-08M-08FP 93.0 68.5 46.5 38.0 27.0 27.0 1/2" NPT
AG-12F-12FP AG-12M-12FP 113.5 84.3 57.5 48.0 34.0 34.0 3/4" NPT
AG-16F-16FP AG-16M-16FP 131.5 99.5 65.5 52.0 41.0 41.0 1" NPT

Pressure and Flow Ratings:

Nominal Size Max Working Pressure (bar) Rated Flow (l/m) Max Flow Rate (l/m) Min Burst Pressure (bar) Fluid Spillage (cc)
Male Female Coupled
04 400 12 24 1600 1700 1700 1
06 350 23 46 1500 1700 1500 2.4
08 250 45 90 1000 1400 1200 2.7
12 250 106 190 1000 1200 1100 8.6
16 250 189 250 1200 1100 1000 13
