AGB-FP
AGB-FP sold by Stainless Steel Fittings

ISO 5675 Agricultural Quick Connect x ORB Female

These quick connect couplers are equivalent to the following:
-Parker 4000 Series
-Dixon AG Series
-Stucchi IRV Series
-Aeroquip FD42
-Safeway S20 Series
-Faster NS Series

Coupling thread is NPTF Pipe Female
ISO 5675 Steel Ball Socket/Plug NPTF Female

Item# Item Name Our Price Qty Add To Cart
AGB-16M-16FP ISO5675, ball steel plug 1" NPT
$21.88
AGB-08M-08FP ISO5675, ball steel plug 1/2" NPT
$9.49
AGB-04M-04FP ISO5675, ball steel plug 1/4" NPT
$11.00
AGB-12M-12FP ISO5675, ball steel plug 3/4" NPT
$21.43
AGB-06M-06FP ISO5675, ball steel plug 3/8" NPT
$9.40
AGB-16F-16FP ISO5675, ball steel socket 1" NPT
$24.61
AGB-08F-08FP ISO5675, ball steel socket 1/2" NPT
$12.58
AGB-04F-04FP ISO5675, ball steel socket 1/4" NPT
$13.02
AGB-12F-12FP ISO5675, ball steel socket 3/4" NPT
$24.77
AGB-06F-06FP ISO5675, ball steel socket 3/8" NPT
$12.73
Check the items you wish to purchase, then click


Features:
Material: Zinc-Plated Carbon Steel Body
Seals: Standard in Nitrile NBR. On request FKM&EPDM seals
Back-up Ring: PTFE
Working Temperature: With standard seals -25°C to +125°C



Technical Specs:

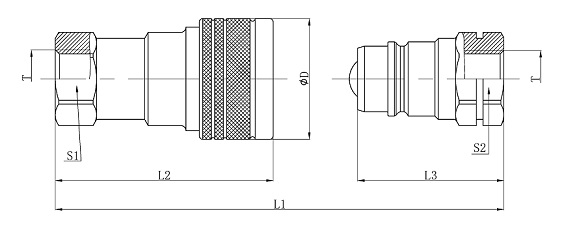

Product ID Female Product ID Male L1 L2 L3 ØD S1 S2 T
AGB-04F-04FP AGB-04M-04FP 73.5 55.5 35.0 28.0 19.0 19.0 1/4" NPT
AGB-06F-06FP AGB-06M-06FP 85.5 63.5 42.5 35.0 24.0 24.0 3/8" NPT
AGB-08F-08FP AGB-08M-08FP 93.0 68.5 46.5 38.0 27.0 27.0 1/2" NPT
AGB-12F-12FP AGB-12M-12FP 113.5 84.3 57.5 48.0 34.0 34.0 3/4" NPT
AGB-16F-16FP AGB-16M-16FP 131.5 99.5 65.5 52.0 41.0 41.0 1" NPT


Pressure and Flow Ratings:

Nominal Size Max Working Pressure (bar) Rated Flow (l/m) Max Flow Rate (l/m) Min Burst Pressure (l/m) Fluid Spillage (cc)
Male Female Coupled
04 300 12 20 1200 1200 1500 0.5
06 250 23 35 1000 1000 1600 1.4
08 200 30 55 800 950 1300 1.9
12 200 60 120 800 1100 1200 4.6
16 200 80 160 850 1100 1000 5.9
