SS-1501
1501_Fitting
(1) MP (2) FP Swivel

Alternative Views:

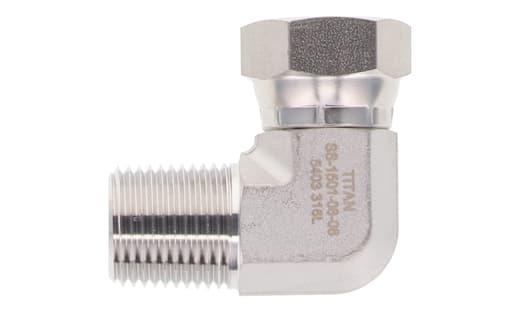

NPT Pipe Male to NPT Pipe Swivel Female 90° Elbow (Stainless)


Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Comparable: AEROQUIP 2047, PARKER 2107, SSP PS-ME, SAE 140230
Male NPT to Female NPT Elbow

Item# Item Name Our Price Qty Add To Cart
SS-1501-02-02 SS-1501-02-02 - 1/8" Male Pipe x 1/8" Female Pipe Swivel 90° - Stainless Steel
$38.02
SS-1501-02-04 SS-1501-02-04 - 1/8" Male Pipe x 1/4" Female Pipe Swivel 90° - Stainless Steel
$48.06
SS-1501-04-04 SS-1501-04-04 - 1/4" Male Pipe x 1/4" Female Pipe Swivel 90° - Stainless Steel
$46.86
SS-1501-04-06 SS-1501-04-06 - 1/4" Male Pipe x 3/8" Female Pipe Swivel 90° - Stainless Steel
$52.25
SS-1501-06-04 SS-1501-06-04 - 3/8" Male Pipe x 1/4" Female Pipe Swivel 90° - Stainless Steel
$65.13
SS-1501-06-06 SS-1501-06-06 - 3/8" Male Pipe x 3/8" Female Pipe Swivel 90° - Stainless Steel
$60.36
SS-1501-06-08 SS-1501-06-08 - 3/8" Male Pipe x 1/2" Female Pipe Swivel 90° - Stainless Steel
$76.59
SS-1501-08-06 SS-1501-08-06 - 1/2" Male Pipe x 3/8" Female Pipe Swivel 90° - Stainless Steel
$81.48
SS-1501-08-08 SS-1501-08-08 - 1/2" Male Pipe x 1/2" Female Pipe Swivel 90° - Stainless Steel
$76.59
SS-1501-08-12 SS-1501-08-12 - 1/2" Male Pipe x 3/4" Female Pipe Swivel 90° - Stainless Steel
$97.20
SS-1501-12-08 SS-1501-12-08 - 3/4" Male Pipe x 1/2" Female Pipe Swivel 90° - Stainless Steel
$110.32
SS-1501-12-12 SS-1501-12-12 - 3/4" Male Pipe x 3/4" Female Pipe Swivel 90° - Stainless Steel
$114.44
SS-1501-12-16 SS-1501-12-16 - 3/4" Male Pipe x 1" Female Pipe Swivel 90° - Stainless Steel
$131.00
SS-1501-16-12 SS-1501-16-12 - 1" Male Pipe x 3/4" Female Pipe Swivel 90° - Stainless Steel
$137.29
SS-1501-16-16 SS-1501-16-16 - 1" Male Pipe x 1" Female Pipe Swivel 90° - Stainless Steel
$100.72
SS-1501-20-20 SS-1501-20-20 - 1-1/4" Male Pipe x 1-1/4" Female Pipe Swivel 90° - Stainless Steel
$247.42
SS-1501-24-24 SS-1501-24-24 - 1-1/2" Male Pipe x 1-1/2" Female Pipe Swivel 90° - Stainless Steel
$293.55
SS-1501-32-32 SS-1501-32-32 - 2" Male Pipe x 2" Female Pipe Swivel 90° - Stainless Steel
$611.39
Check the items you wish to purchase, then click


Features:
NPTF Pipe Male to NPSM Pipe Swivel Female 90° Elbow (Stainless)
Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Intercomparable: AEROQUIP 2047, PARKER 2107, SSP PS-ME, SAE 140230



Technical Specs:
Pressure:
NPT PRESSURE RATINGS, ANSI/ASME B 31.3
SIZE NPT MALE FEMALE
DESIGNATOR SIZE PSIG BAR PSIG BAR
1 1/16 11000 757 6700 461
2 1/8 10000 689 6500 447
4 1/4 8000 551 6600 454
6 3/8 7800 537 5300 365
8 1/2 7700 530 4900 337
12 3/4 7300 502 4600 316
16 1 5300 365 4400 303
20 1 1/4 6000 413 5000 344
24 1 1/2 5000 344 4600 316
32 2 3900 268 3900 268
Dimensional Drawings:
ITEM # MP-1 FP-2 THREAD-1 THREAD-2 A B
SS-1501-04-04 1/4 1/4 1/4-18 1/4-18 1.049 1.049
SS-1501-06-06 3/8 3/8 3/8-18 3/8-18 1.211 1.211
SS-1501-08-08 1/2 1/2 1/2-14 1/2-14 1.529 1.378
SS-1501-12-12 3/4 3/4 3/4-14 3/4-14 1.635 1.623
SS-1501-16-16 1 1 1-11 1/2 1-11 1/2 1.955 1.874
Competitor Cross Reference:
INTERCHANGEABLE WITH COMPETITOR PART NUMBERS
SHF AEROQUIP PARKER SSP SAE
1501-04-04 259-2047-4-4 2107-4-4-SS PS4-4ME 140230
1501-06-06 259-2047-6-6 2107-6-6-SS PS6-6ME 140230
1501-08-08 259-2047-8-8 2107-8-8-SS PS8-8ME 140230
1501-12-12 259-2047-12-12 2107-12-12-SS PS12ME 140230
1501-16-16 259-2047-16-16 2107-16-16-SS PS16ME 140230
